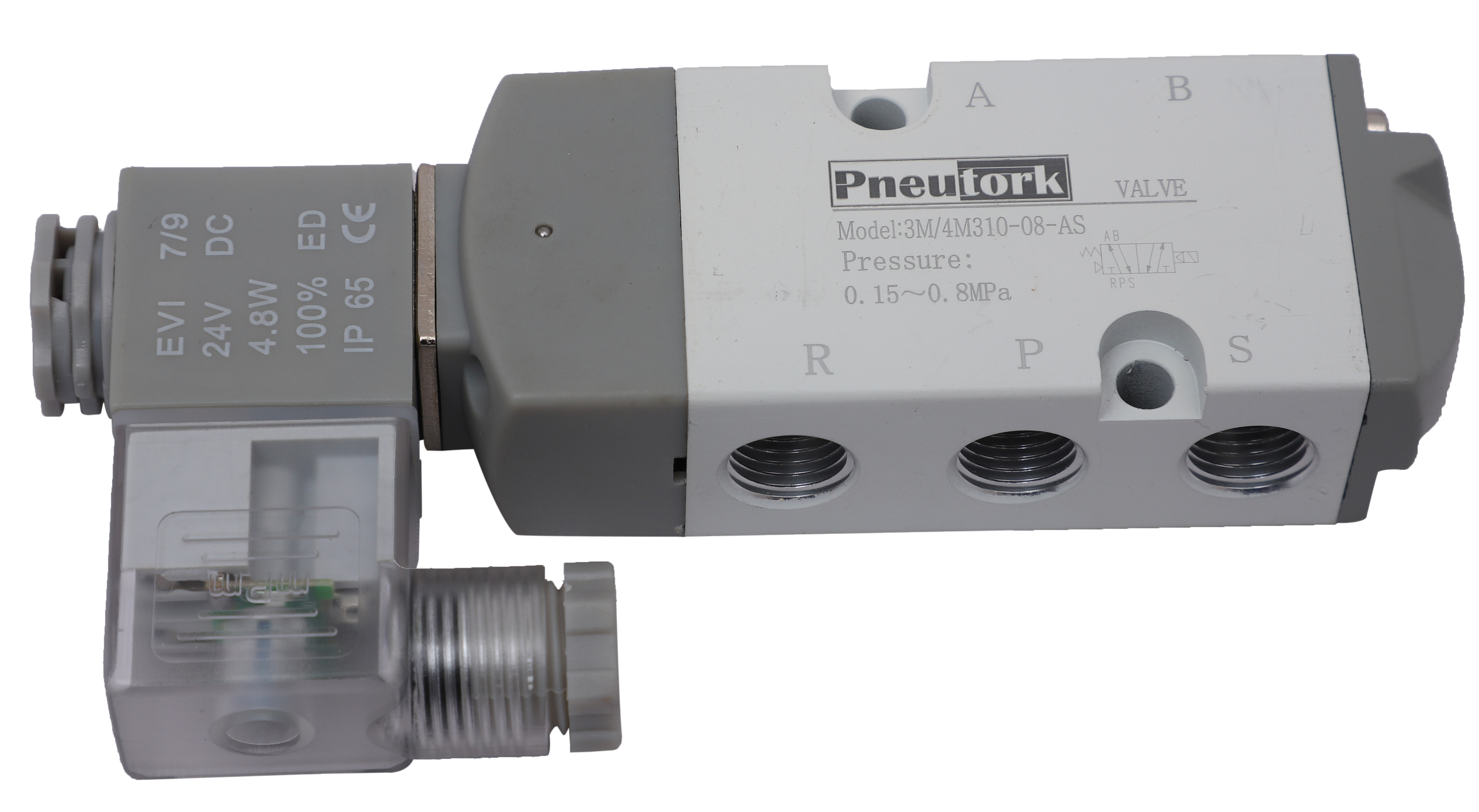

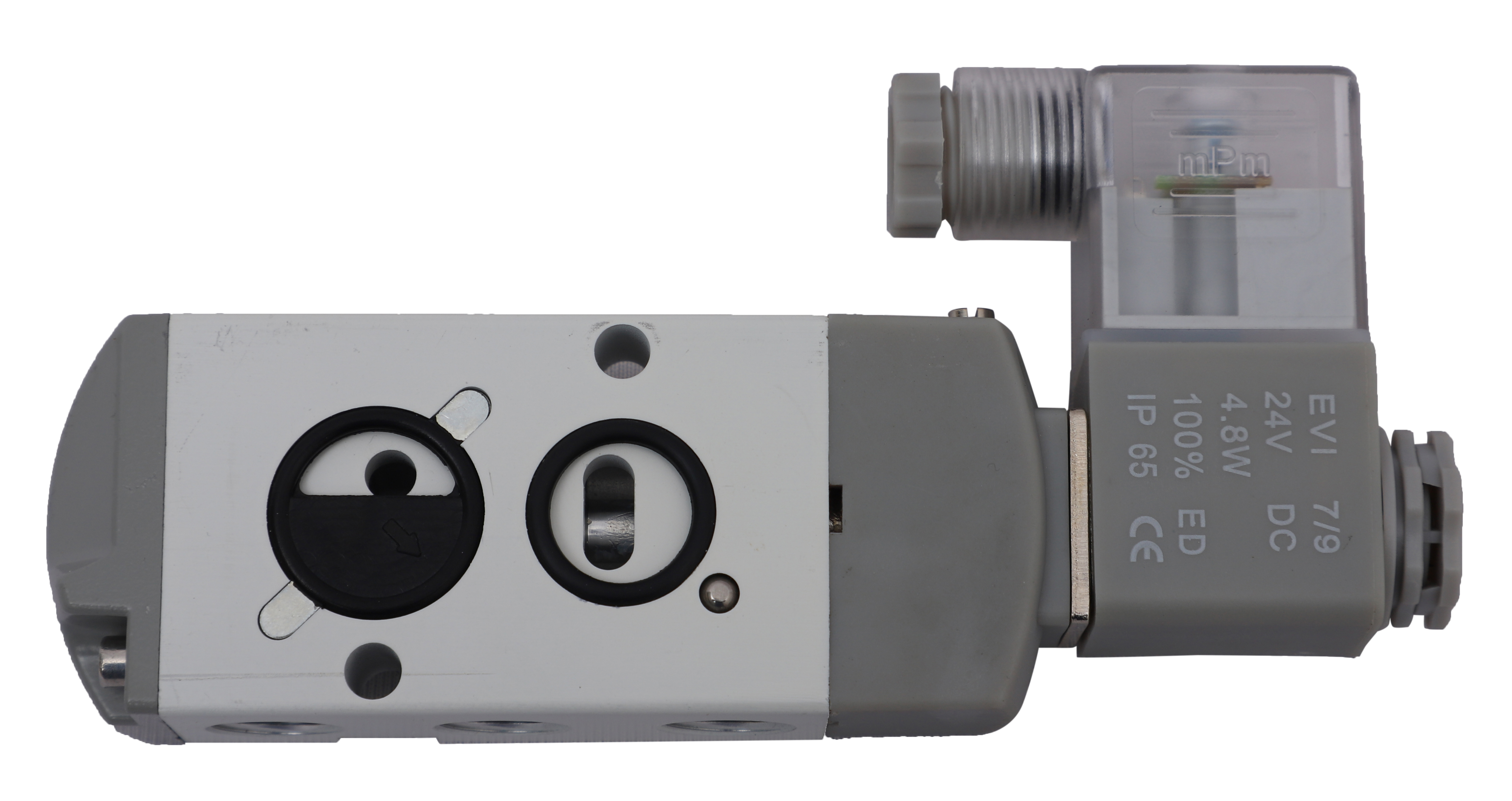

| Type | 3/2 way Single Coil |
|---|---|
| Body | Aluminium |
| Acting | Piloted |
| Insulation Class | Class "F" |
| Duty Cycle | ED 100 |
| Protection Class | IP65 (DIN40050) |
| Voltage tolerance | ±10% |

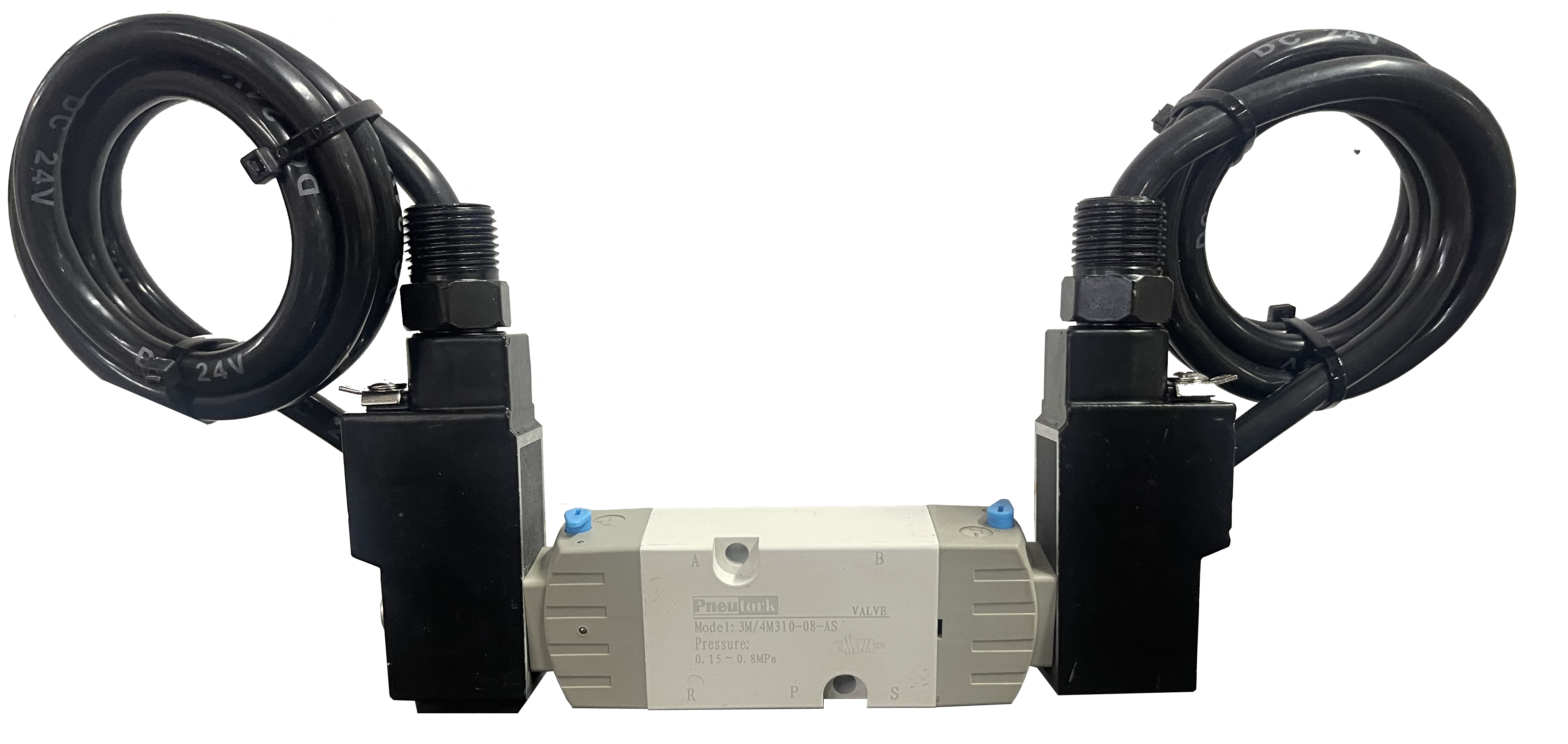

| Voltage | 220VAC / 110VAC / 24VAC / 24VDC / 12VDC Explosion Proof Coil - with wire available |
| Working Pressure | 0.5-0.8Mpa |

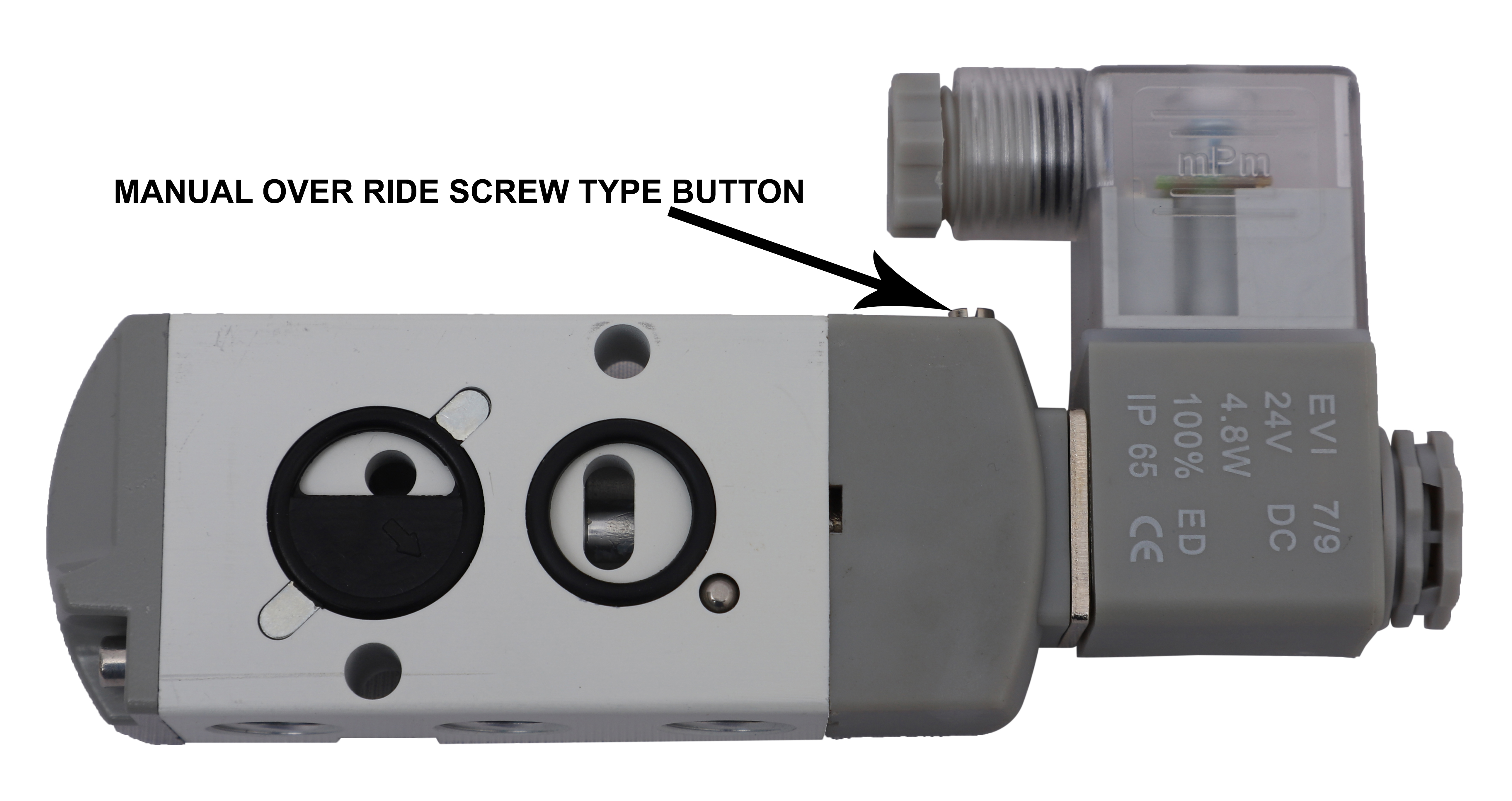

| Manual Override | Locking Type |
| Lubrication | Not lubrication |
| Max. Operating frequency | 3-5 cycle/sec PER stop |
| Respond Time | 0.05 seconds |
| Operating temperature | -20°C-70°C |
| Fluid | Air |

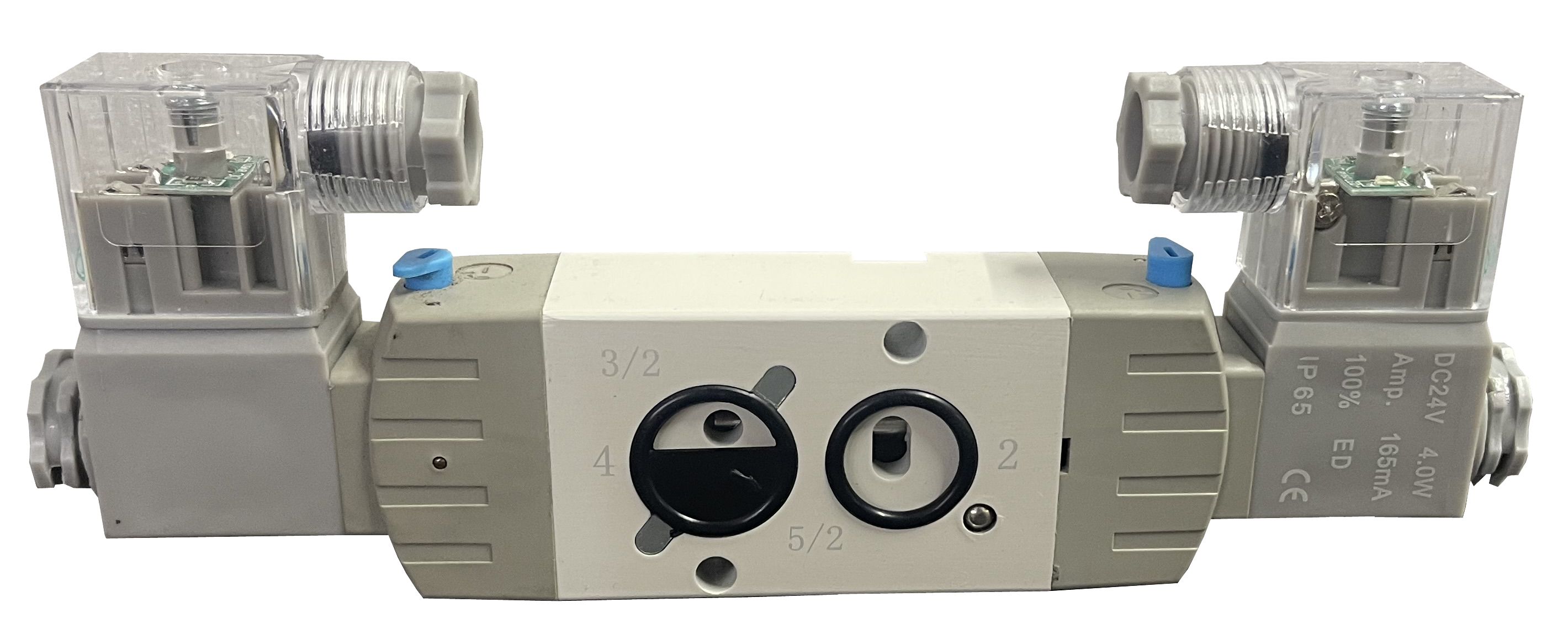

| Type | 3/2 way Double Coil |
|---|---|
| Body | Aluminium |
| Acting | Piloted |
| Insulation Class | Class "F" |
| Duty Cycle | ED 100 |
| Protection Class | IP65 (DIN40050) |
| Voltage tolerance | ±10% |
| Voltage | 220VAC / 110VAC / 24VAC / 24VDC / 12VDC Explosion Proof Coil - with wire available |
| Working Pressure | 0.5-0.8Mpa |
| Manual Override | Locking Type |
| Lubrication | Not lubrication |
| Max. Operating frequency | 3-5 cycle/sec PER stop |
| Respond Time | 0.05 seconds |
| Operating temperature | -20°C-70°C |
| Fluid | Air |
